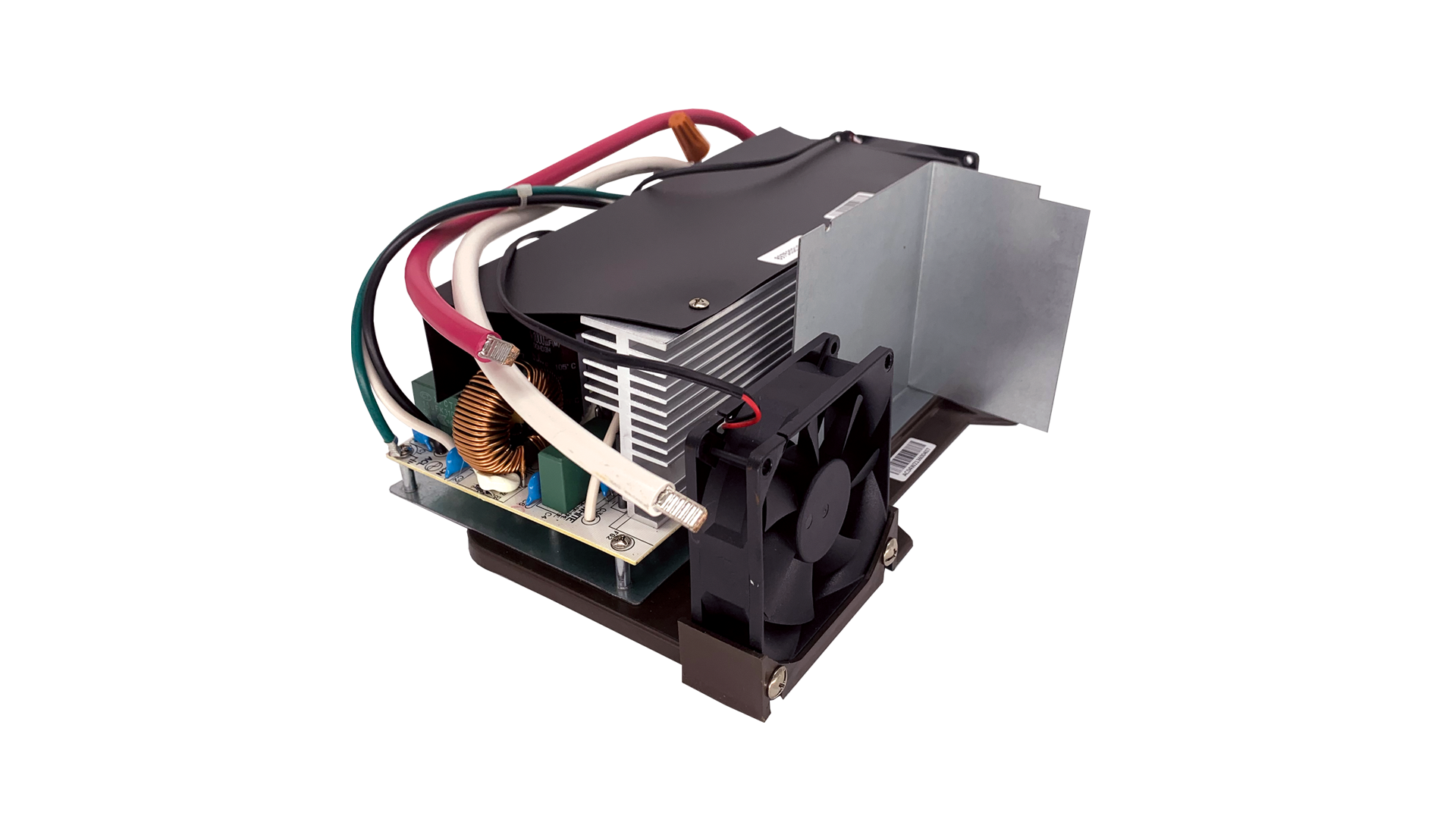

WF-8975-MBA Main Board Assembly

Our WF-8975-MBA Main Board Assembly is a quick, easy replacement part for all power centers. It installs easily with only two screws, three ac, and two DC wires. With no need to re-wire, installation is only 10 minutes! No additional wiring or hookup is required, and it accepts hi-pot testing. Customers also have the option for Reverse Polarity Detection that meets new RVIA & NEC requirements with audible alarm notification.

For a lithium-ready solution, click here.

To learn more about our products through video, click here. For any WFCO resources, tools, and information on our products, email support@wfcoelectronics.com with your request, or click here to download the WFCO Product Catalog.

Find an Authorized Dealer

Download Product Catalog

SPECIFICATIONS
DOWNLOADS

Additional Information

Output Power	1300 W
Input Voltage/Hz	105-130 VAC, 60 Hz
Weight	8 Lbs.
Dimensions	7 1/16" W x 3 7/8" H x 9 1/2" D
Output Current	75 A
Converter Type	Three-Stage Converter Charger
Voltage Output	13.2 – 14.4V DC Range
Bulk Mode (Quick Charging Voltage)	14.4V DC (quick charging voltage)
Absorption Mode (Nominal Voltage)	13.6V DC (nominal voltage)
Float Mode (Trickle Charge Voltage)	13.2V DC (trickle charge voltage)
Over Current	Yes
Over Temperature	Yes
Over Voltage	Yes
Reverse Polarity	Yes
Cooling System	Yes
Mounting Plate Material	Plastic
Mounting Plate Color	Black, Brown
Certifications	FCC

Product Documents

PRODUCT SHEET

WF-8975-MBA Main Board Assembly Product Sheet
